Bioprinting
Plataform

Genesis™

THE CUSTOMER'S PREFERENCE

A cost-effective bioprinter that meets a wide range of applications.

Double printhead, interchangeable and with customizable options

Hybrid system

Cooling and/or heating system of syringes and bed

Photo curing system with UV/Visible light

Possibility of a fourth rotatory axis for reconstruction of tubular structures

Closed chamber

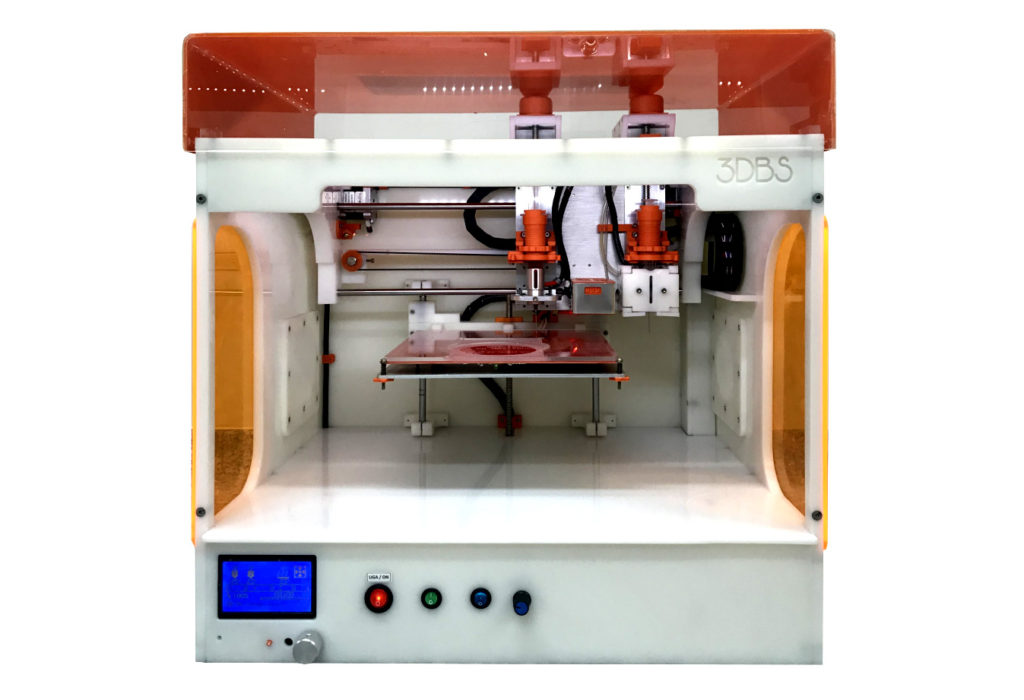

The Genesis ™ bioprinter is the preferred choice among 3DBS customers, providing great value for your money, serving a wide range of applications, whether you are automating 3D cell cultures, developing complex tissues biomimetics or testing new cosmetic or drug formulations.

Genesis ™ has a double printhead with a mechanical microextrusion mechanism. It has high deposition accuracy, which allows you to work with low to high viscosities hydrogels.

Prototype Performance

PROCESS:
Microextrusion mechanism. Controlled deposition of liquid / viscous solutions (eg hydrogels / biotin) and polymers in molten pellets.
DIMENSIONS:
510 mm (W) x 365 mm (D) x 500 mm (H)
WEIGHT:
30 Kg
PRINTING VOLUME:
100 mm (W) x 140 mm (D) x 100 mm (H)
MOVEMENT:
Stepper motors, 8 h6 chromed and tempered steel guides, with 8 mm linear bearings and linear guides.
MAX. SPEED PRINTING
40 mm / s (controllable)
MOTION ACCURACY:
0.01 mm on the X and Y axes and 0.005 mm on the Z axis (height).
PRINTING MATERIAL:
Viscous liquids / solutions, hydrogels loaded with cells and / or biomolecules. Polymers in pellets.
UV PHOTOCURE SYSTEM:
Ultra-violet (available wavelengths 365 and 405 nm), manual control.
STRUCTURE:
HDPE White
PRINTING TABLE:
160 mm x 180 mm with heating. Max. Temperature 80 ° C.
SYRINGE SYSTEM (BIOTINTES):
Two printheads with heating. Max. Temperature 80 ° C. Liquid / solution in syringe (syringe volume 10 -20 ml)
1 (ONE) PELLET EXTRUDER:
Special heated aluminum / STAINLESS syringe - 0.4 mm diameter outlet and maximum temperature of 240 ° C (interchangeable with plastic syringe).
FILTERS SYSTEM:
HEPA14 class.
ELECTRIC TENSION:
Bvolt 110V / 220V
FILE FORMAT:
File in “.STL”, “AMF” format
Software:
Pronterface and Slic3R / Cura (supplied with equipment).
